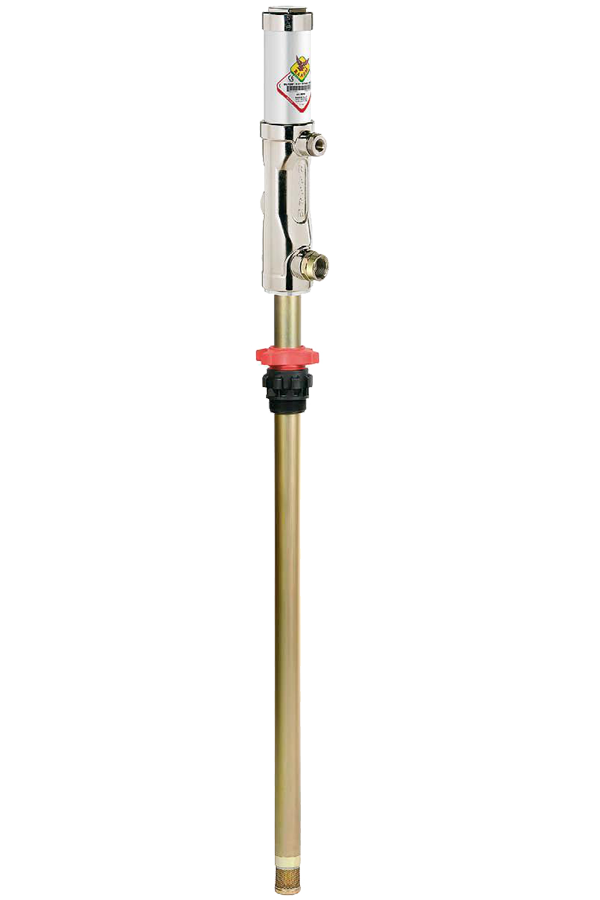

PERMEX RL35094 – RAASM SERIES 500 3:1 AIR-OPERATED DISTRIBUTION PUMP
RL35094 – RAASM SERIES 500 3:1 AIR-OPERATED DISTRIBUTION PUMP:
Air-operated pump Series 500 for medium-distance distribution.
Ideal for transferring low-medium viscosity fluids such as: oils, lubricants and similar products. Suitable for mobile units or fixed installations. The wall-mounted version of these pumps, mounted on wall or in a fixed position by means of the special accessories, enables numerous uses through the application of modular extensions.
3:1 Ratio Pump with a 20l/min Flow rate
| Compatible fluids | Oils, lubricants and similar |
| Suction tube upper body | Aluminium |
| Suction tube | Carbon steel |
| Air inlet connection | F ¼” G BSP |
| Fluid outlet connection | F ½” G BSP |
| Air working pressure | 4 – 8 Bar |
| Average air consumption | 350 l/min |
| Noise level | 81 dB |
| Max deliverable oil viscosity | 130 SAE |
| Bung adaptor | RL38046 |
| Packing | 1 box – 0,01m³ |
| Weight | 6.5kg |
| Dimensions (A-B-C) | 33.2cm x 94cm x 3.2cm |
